ASUS ROG Dominus Extreme

motherboard LGA3647 ROG

Picked this up as a “broken” board — seller described it as power cycling once before booting into Windows, Aura RGB acting erratic, and missing chipset drivers. Diagnosed and fixed it myself: updated the ME Engine firmware, installed chipset drivers, and flashed the BIOS.

Ran it as a daily driver for two months without a single issue. Eventually pulled the GPU and SSD to move on to a new build. When I went to fire it back up with a Titan RTX it hung at POST code 00 — turned out to be corrupted CMOS data, cleared with a single button press and it came straight up.

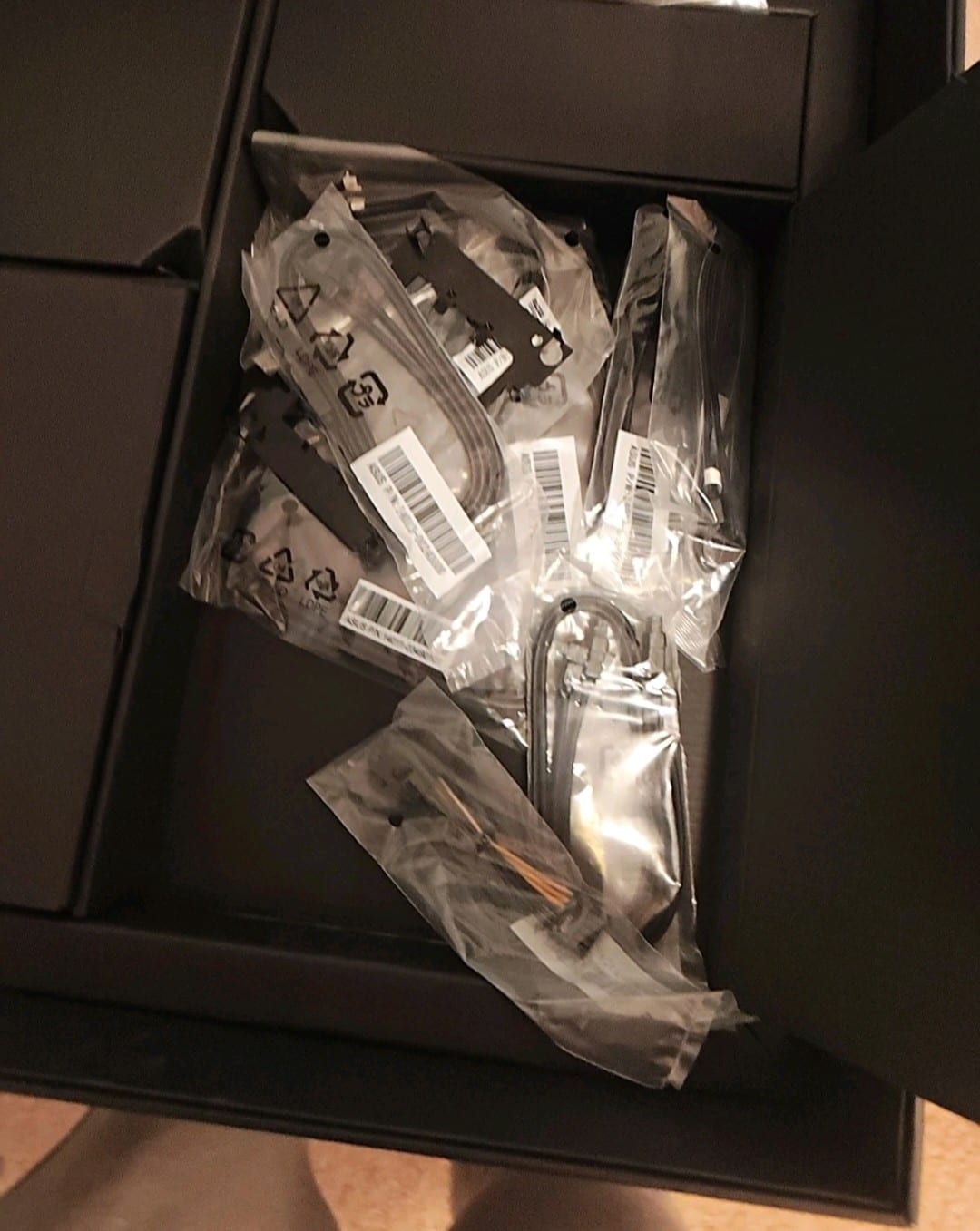

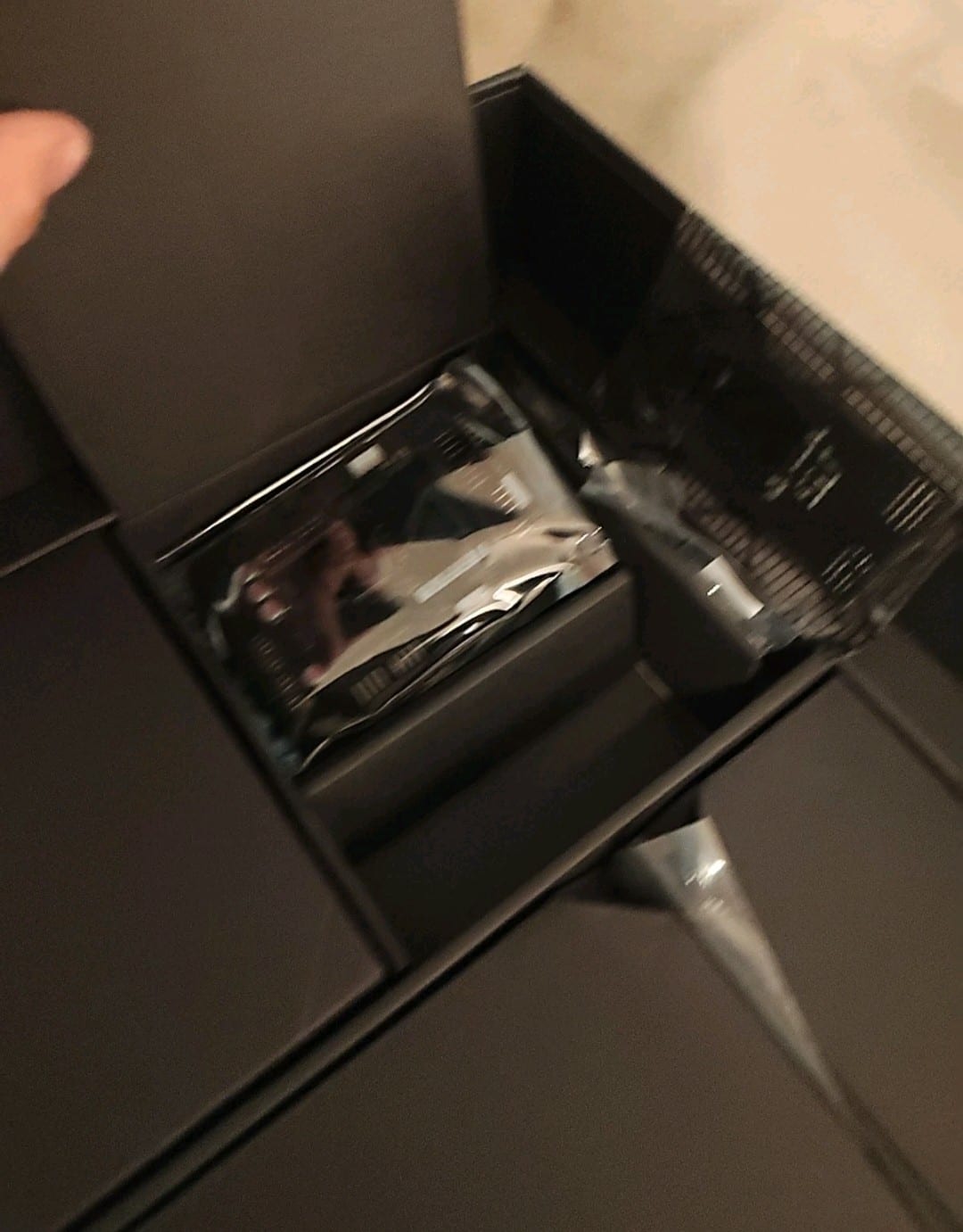

Comes complete with all accessories, most still unopened. Even the coaster is still sealed. One of the most extreme enthusiast boards ASUS ever made, built around the only consumer 28-core CPU Intel ever shipped.

Still in the collection — full teardown and VRM deep-dive on the blog.

Read the deep-dive

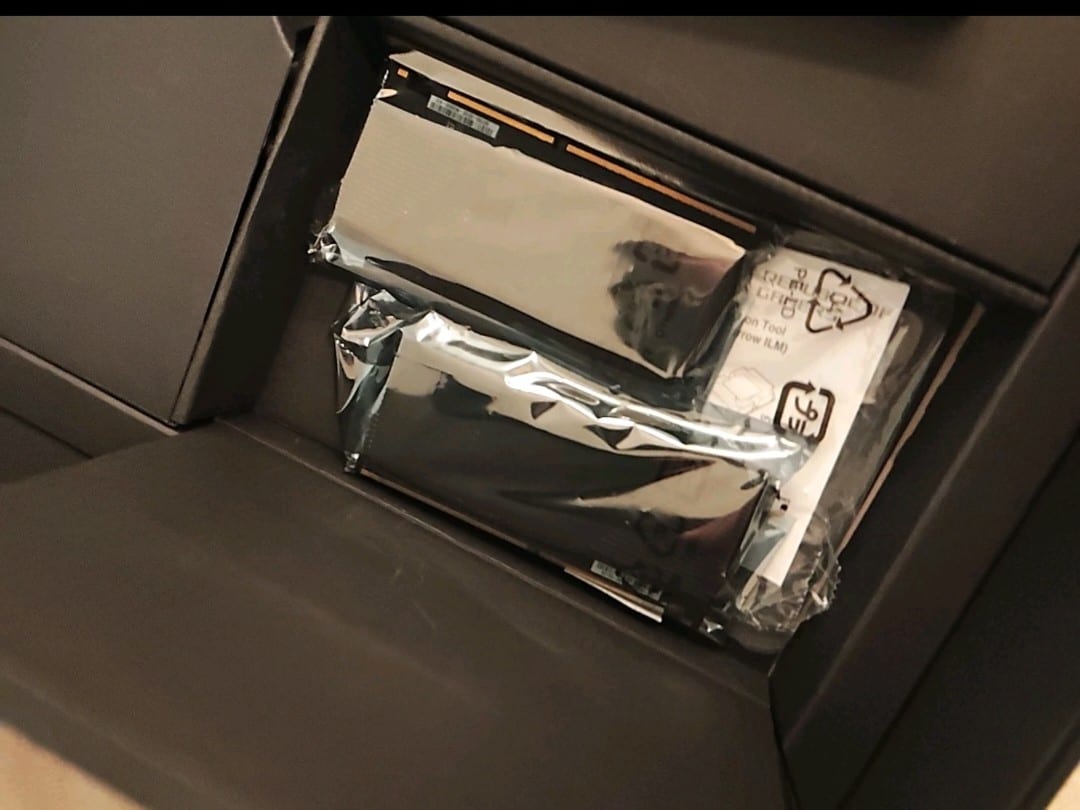

DIMM.2 on the ROG Dominus Extreme: The Feature That Almost Killed My RAM — Two DIMM.2 slots, four M.2 drives, and a RAM overheating problem I didn't see coming. The Dominus Extreme's most interesting feature is also its most annoying one.
My First ROG Dominus Extreme Was $300 and I Flipped It — Spring 2024, $300, and an EKWB VRM block included in the sale. Post code 00 resistor problem. Sold it for profit. Buyer fixed it.
The Dominus Extreme Came Back From the Dead — POST code 00, a dead board, an eBay listing, and one button fix.
Why the ROG Dominus Extreme VRM Will Basically Last Forever — 32 teamed IR3555 power stages, a CPU that pulls 400 watts, and barely 12 amps per phase. The Dominus Extreme power delivery is so overbuilt it can't really wear out — here's the math, the board, and why nothing current touches it.

Related finds

Intel Xeon W-3175X — CPU

← All Finds

Full Specifications

Form Factor

SSI-EEB (Extended ATX)

Socket

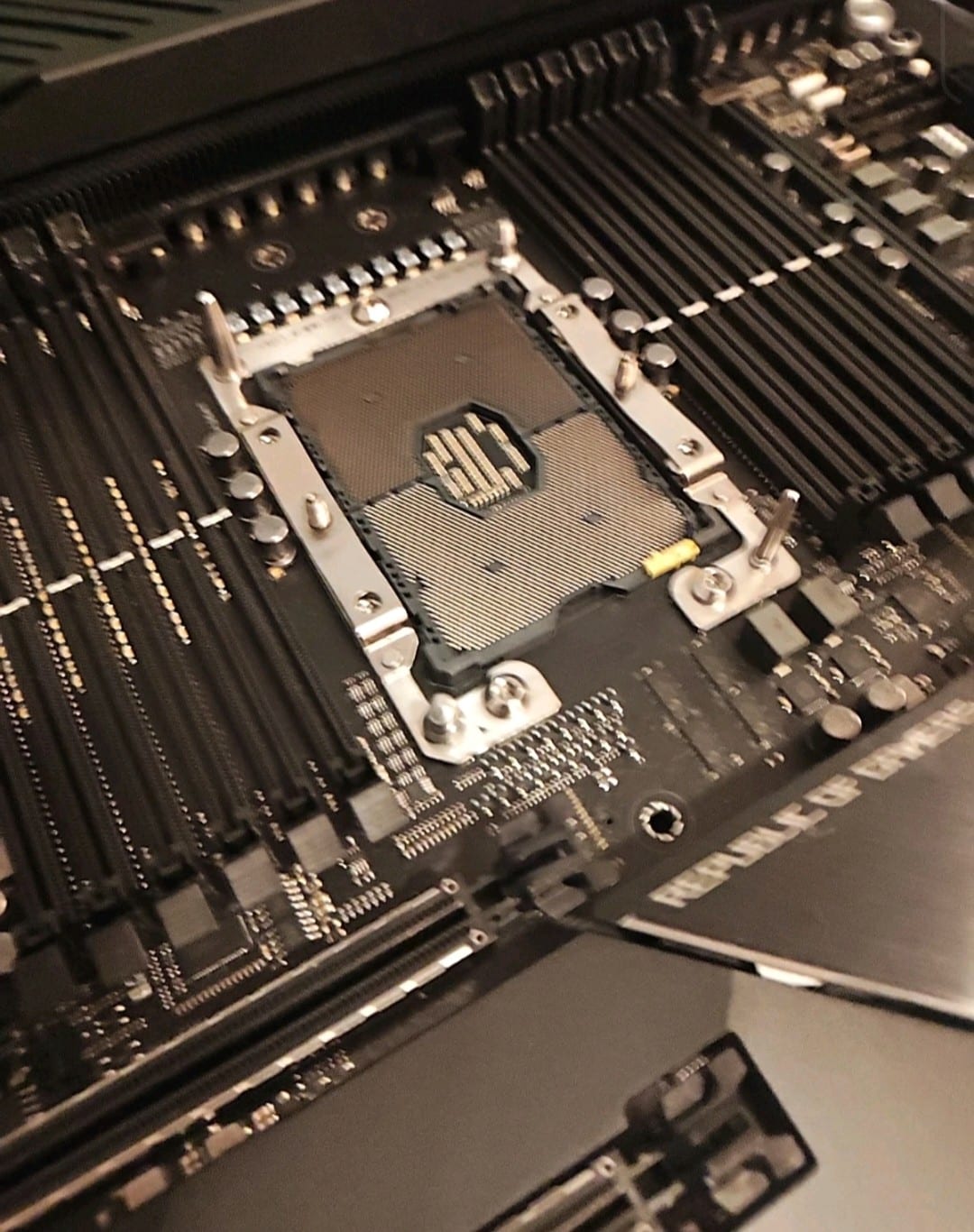

Intel LGA 3647

CPU Support

Intel Xeon W-3175X only (28C / 56T)

Memory Slots

12x DIMM — 6-channel DDR4 (2 per channel)

Max Memory

192 GB DDR4 ECC / non-ECC

PCIe Slots

4x PCIe 3.0 x16

Storage

8x SATA 6Gb/s

USB

USB 3.1 Gen 2 (Type-A + Type-C), USB 3.1 Gen 1

Networking

Aquantia AQC-107 10G + Intel I219-LM 1G + Intel AC-9260 Wi-Fi

Audio

ROG SupremeFX 8-channel

RGB

Full ROG Aura Sync RGB

Chipset

Intel C621

Condition

Good — fully working, POSTs clean

Includes

All original accessories, most unopened. Sealed coaster included.
