I Paid $280 for a Dual-Socket DDR4 Workstation With Noctua Coolers Already On It

ASUS Z10PE-D16 with dual Xeon E5-2620 v4 and Noctua NH-D9DX coolers, top-down view

$280 shipped. Dual-socket DDR4 ECC workstation board, two Xeons, 64GB of registered ECC, and two Noctua NH-D9DX tower coolers already mounted. The auction drew zero bids, the relist took a Best Offer, and I got it at $220 plus freight. Same story as the Z9PE-D8 WS before it — and this one is better.


The Bundle

Here’s exactly what came in the box:

  • ASUS Z10PE-D16 (the PCB silkscreen reads Z10PE-D16, not the WS) — dual LGA2011-3, C612 chipset, SSI-EEB
  • 2x Intel Xeon E5-2620 v4 — 8c/16t each, 16 cores / 32 threads total
  • 64GB DDR4 ECC RDIMM — 4x 16GB Micron MTA18ASF2G72PDZ-2G3B1IK, PC4-2400T, 2Rx8
  • 2x Noctua NH-D9DX i4 3U — with NM-XFB3 LGA2011 Square-ILM brackets

The coolers are the part I keep coming back to. The NH-D9DX i4 is the specific Noctua model built for LGA2011 workstation sockets — it fits the Square ILM retention and clears the DIMM slots on most server-class boards. They go for $70-90 each new. The seller just threw them in. I didn’t ask why.


What the Z10PE-D16 Is

Z10PE-D16 PCB name printed between the two CPU DIMM banks

The “D16” is the important part. Sixteen DIMM slots — eight per CPU, quad-channel per socket. That’s the whole board. Where cheaper dual-socket platforms cut corners on memory slots, ASUS built this one out fully. Fill it with 64GB LRDIMMs and you’ve got a 1TB system. Fill it with the 16GB RDIMMs that came in this bundle and you’ve got 256GB with all 16 slots filled.

The rest of the basics: C612 chipset, SSI-EEB form factor. ASUS sold this family in several flavors — the plain D16, the /10G-2T, the /4L, and the WS, which is the one with six x16-length slots — and the slot layout and LAN change between them. Mine is the plain D16, since that’s what’s printed on the PCB. Check the sticker on your board and the ASUS manual for your exact suffix before you plan around a slot count.

It needs a server case, pedestal workstation chassis, or open bench. It’s too big for a standard ATX enclosure.

Side profile of the Z10PE-D16 showing IO area and DIMM slots


The IPMI

Bottom-left corner of the Z10PE-D16 showing the ASPEED AST2400 BMC chip The ASPEED AST2400 is right there on the PCB. That chip is the whole reason this board commands a premium over consumer HEDT.

The ASUS ASMB8-iKVM module is what separates this from anything in the consumer HEDT world. Full IPMI 2.0 out-of-band management through a dedicated management port, powered by the ASPEED AST2400 SoC — its own processor, its own memory, its own network connection, completely independent of the main system.

What that means in practice: you can power the machine on or off remotely even when the OS is dead. You get a full KVM-over-IP browser session — keyboard, video, mouse — so you see POST messages, BIOS screens, and OS boot failures without a monitor attached. You can mount an ISO over the network as a virtual optical drive and do a completely headless Proxmox install. You can hook it into ipmitool and automate power management from other machines. You get SNMP and SMTP alerting on fan failures, voltage drift, and temperature spikes before they become real problems.

You won’t find this on any mainstream consumer board. Z390, standard X299, consumer Threadripper — none of them ship with IPMI as a built-in feature. Workstation and rack-oriented variants from ASRock Rack and Supermicro do exist with IPMI on those chipsets, but they’re a completely different product category at a very different price. The Z10PE-D16 has the ASMB8-iKVM built in from the factory because this board shipped into server rooms, not gaming setups. The BIOS even has a dedicated “Server Mgmt” menu tab — visible right in the POST shot below.

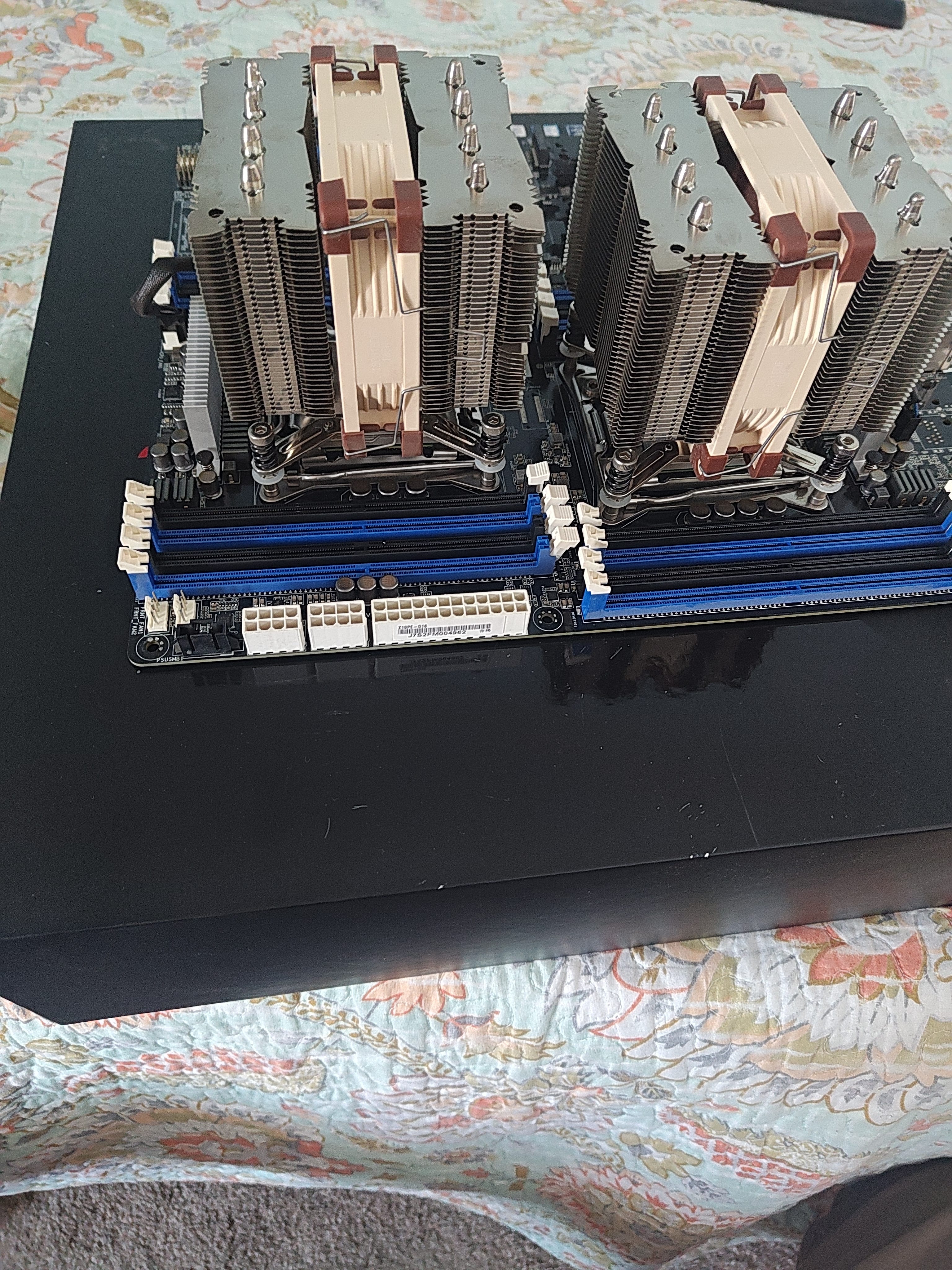

Top-down view of both Noctua coolers showing CPU power connectors between them Both 8-pin EPS connectors visible between the coolers. This board wants a server PSU or a quality ATX unit with dual CPU power.


Testing

Set it up on an open bench — GPU for video out, PSU, power on.

Full open bench test of Z10PE-D16 with MSI GPU, PSU, and Noctua coolers connected

Posted first try. Both CPUs detected, all four DIMMs recognized, ECC active, hardware monitoring live. BIOS revision 3703, build date 04/24/2018. BMC initialized without issue.

BIOS screen showing 65536MB total memory and BIOS version 3703 65536 MB. That’s 64GB exactly, all of it showing up clean.

Intel Xeon E5-2620 v4 seated in CPU1 socket on Z10PE-D16 E5-2620 v4, SR2R6, 2.10GHz. Low-end Broadwell-EP — not exciting, but it proves the sockets work and the platform is functional.

Board is confirmed working. Nothing to hedge on.


The IO and Storage End

Bottom-right corner of Z10PE-D16 showing SATA ports and M.2 slot

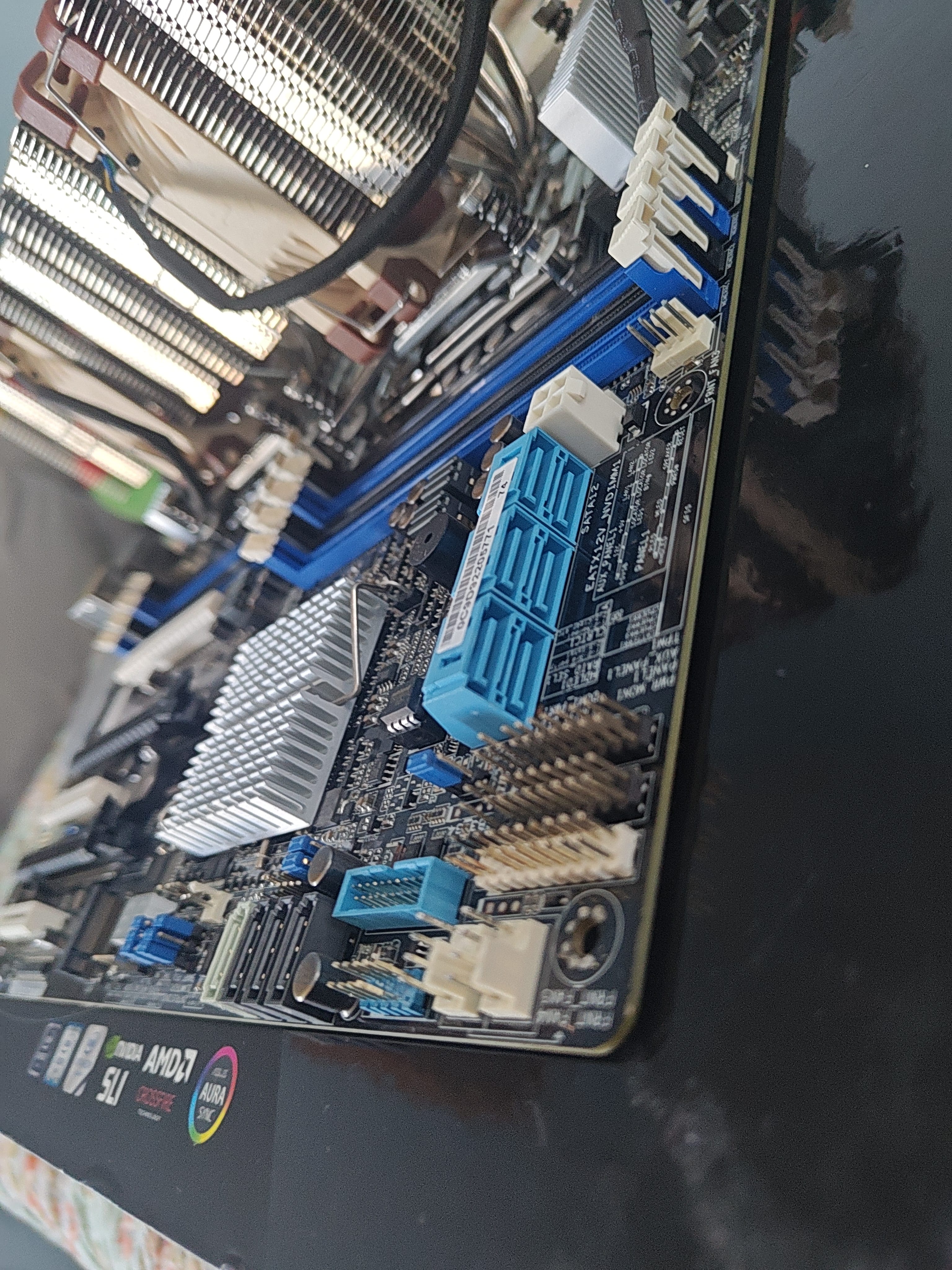

Angled view of Z10PE-D16 SATA and storage connectivity area SATA ports, M.2, and headers all clean. No damage, no missing caps, nothing bent.

The IO corner is fine — worth noting because this is where I found damage on the Z9PE-D8 before this one. This board traveled well.


How I Split It

Same playbook as the Z9PE-D8 flip. Three-way split, RAM first.

Noctua coolers. Two NH-D9DX i4 3U units. Sold both, around $50 each.

RAM. The 64GB DDR4 ECC RDIMM kit — four matched Micron 16GB PC4-2400T sticks, exactly what LGA 2011-v3 homelabbers are after. Sold for $180.

Board and CPUs as a combo. Z10PE-D16 with both E5-2620 v4s, sold tested and confirmed. The E5-2620 v4 isn’t a glamorous CPU — 2.1GHz base, eight cores — but two of them gives a Proxmox buyer 16 cores / 32 threads, quad-channel DDR4 ECC per socket, and full IPMI in a confirmed-working package. Sold for around $160.

Total. Roughly $440 back on $280 — about $160 ahead, before fees and shipping.


The DDR4 ECC Market Right Now

If you’re reading this because you’re thinking about buying into a LGA 2011-v3 platform: do it now, not later.

I don’t have a tracked price history to show you. What I have is one data point — my 4×16GB Micron kit sold for $180 — and the fact that listings for this stuff keep getting crazier.

This matters because the Z10PE-D16 takes registered (RDIMM) or load-reduced (LRDIMM) ECC — you can’t sub in consumer DDR4 here. Other LGA 2011-v3 boards are different: my Rampage V Extreme is an X99 board and runs ordinary unbuffered DDR4. The boards are cheap because they’re old server gear. The RAM is where the money is.

The RAM in this bundle is what makes the math work. $280 for the whole thing, and the RAM alone sold for $180. The rest is gravy.


As much as I’d love to keep this thing and play with 256GB of DDR4 ECC and a full IPMI setup — I’ve got something way more fun in the works. New build coming together around an ASUS ROG Z490 Apex and I’m pushing the memory to something stupid like 4000MHz CL15. Very different energy from a dual-socket server board, but that’s kind of the point. Stay tuned.

Previous flip in the same series: Dual-Socket LGA 2011 Bundles Are Free Money If You Know What You’re Looking At.
