ASUS Z10PE-D16 + Dual Xeon E5-2620 v4

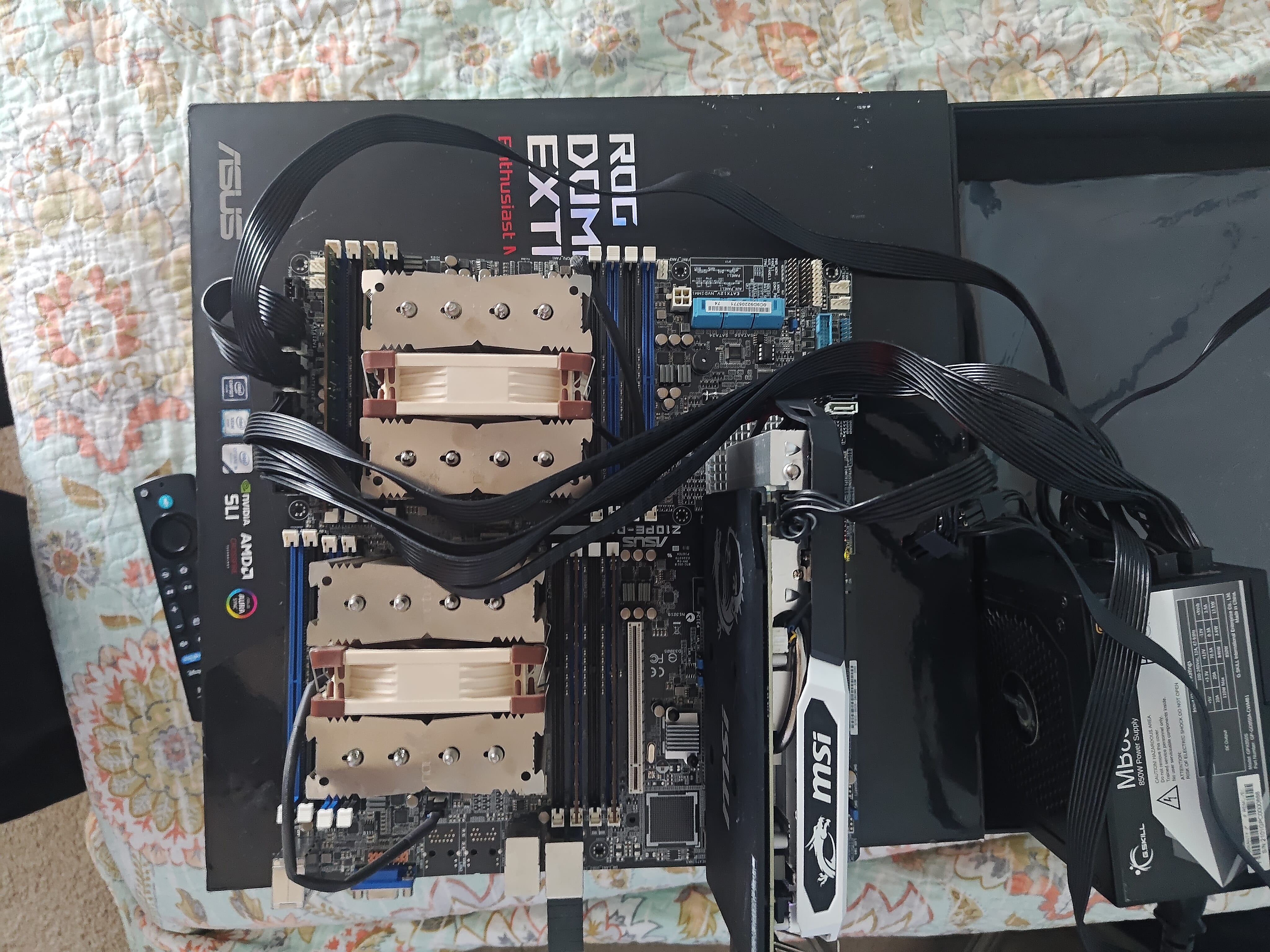

Pulled from a working system and confirmed fully operational — booted to BIOS clean, both CPUs identified correctly, all memory slots verified, no Q-code errors.
Full onboard IPMI/BMC (ASMB8-iKVM) — dedicated management port, out-of-band remote access via web browser. KVM over IP, remote power on/off/reset, hardware monitoring, fan control, BIOS access over the network. No extra hardware needed. Proxmox and homelab builders know exactly what this means.
Upgrade path goes all the way to E5-2699 v4 (22-core) in both sockets — the included E5-2620 v4s prove the platform works, and you can drop in whatever v3 or v4 Xeons you want from there.
Full writeup on the flip on the blog.
Read the deep-dive
- I Paid $280 for a Dual-Socket DDR4 Workstation With Noctua Coolers Already On It — ASUS Z10PE-D16, dual E5-2620 v4, 64GB DDR4 ECC, two Noctua NH-D9DX coolers, full IPMI. $280 shipped. Here's the board, the test results, and the split plan.
Related finds
Full Specifications
Form Factor
SSI-EEB (needs server case or open bench)
Sockets
Dual LGA 2011-3 (Socket R3)
CPU Support
E5-2600 v3 / v4 — up to E5-2699 v4 (22-core)
Chipset
Intel C612
Included CPUs

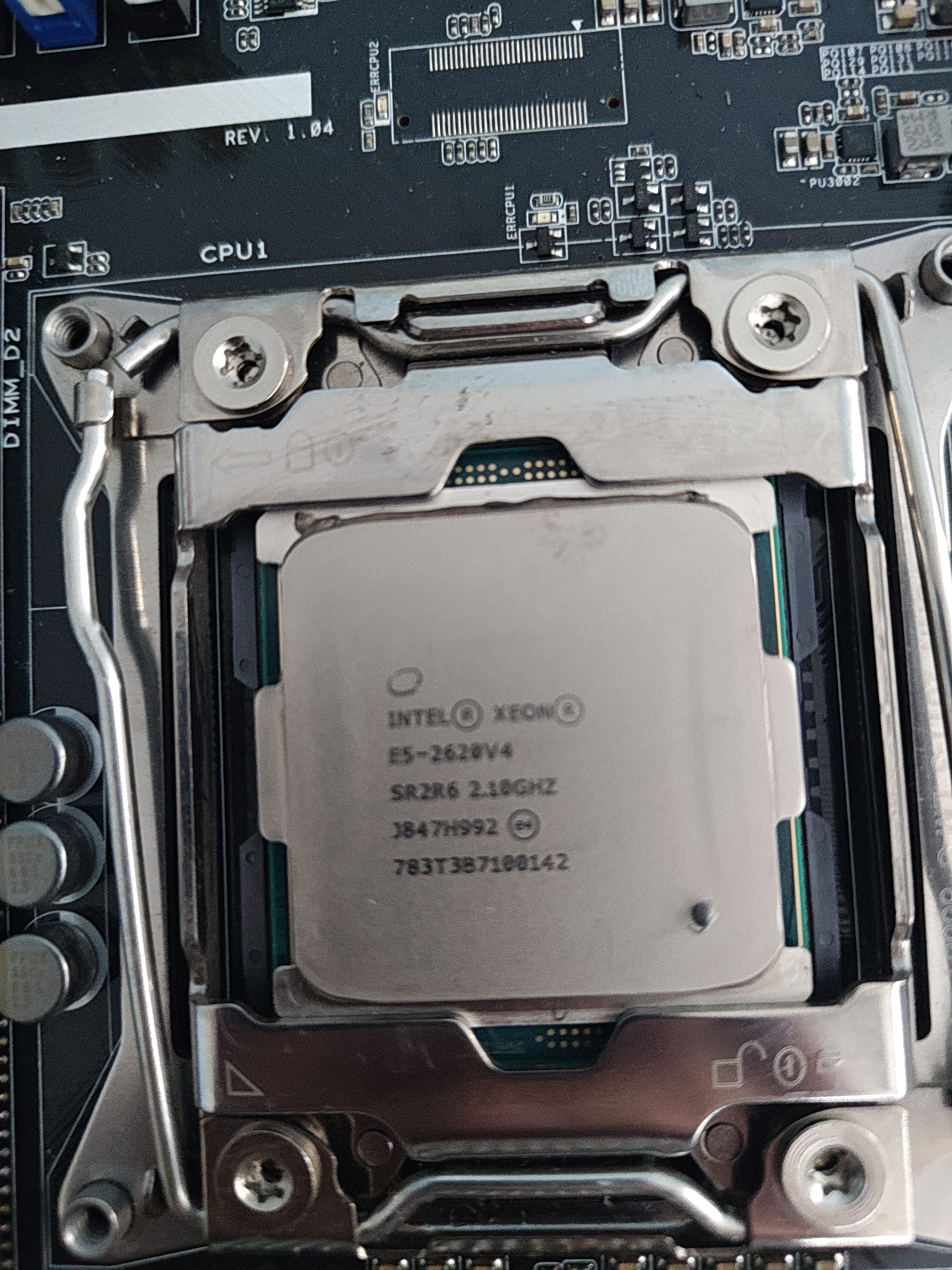

2x Intel Xeon E5-2620 v4 (8C/16T · 2.1GHz · boost 3.0GHz · 85W)
Memory Slots
16x DDR4 DIMM — 8 per CPU, quad-channel per socket
Memory Support
ECC RDIMM / LRDIMM · up to 1TB RAM
PCIe
Multiple PCIe 3.0 slots
Storage

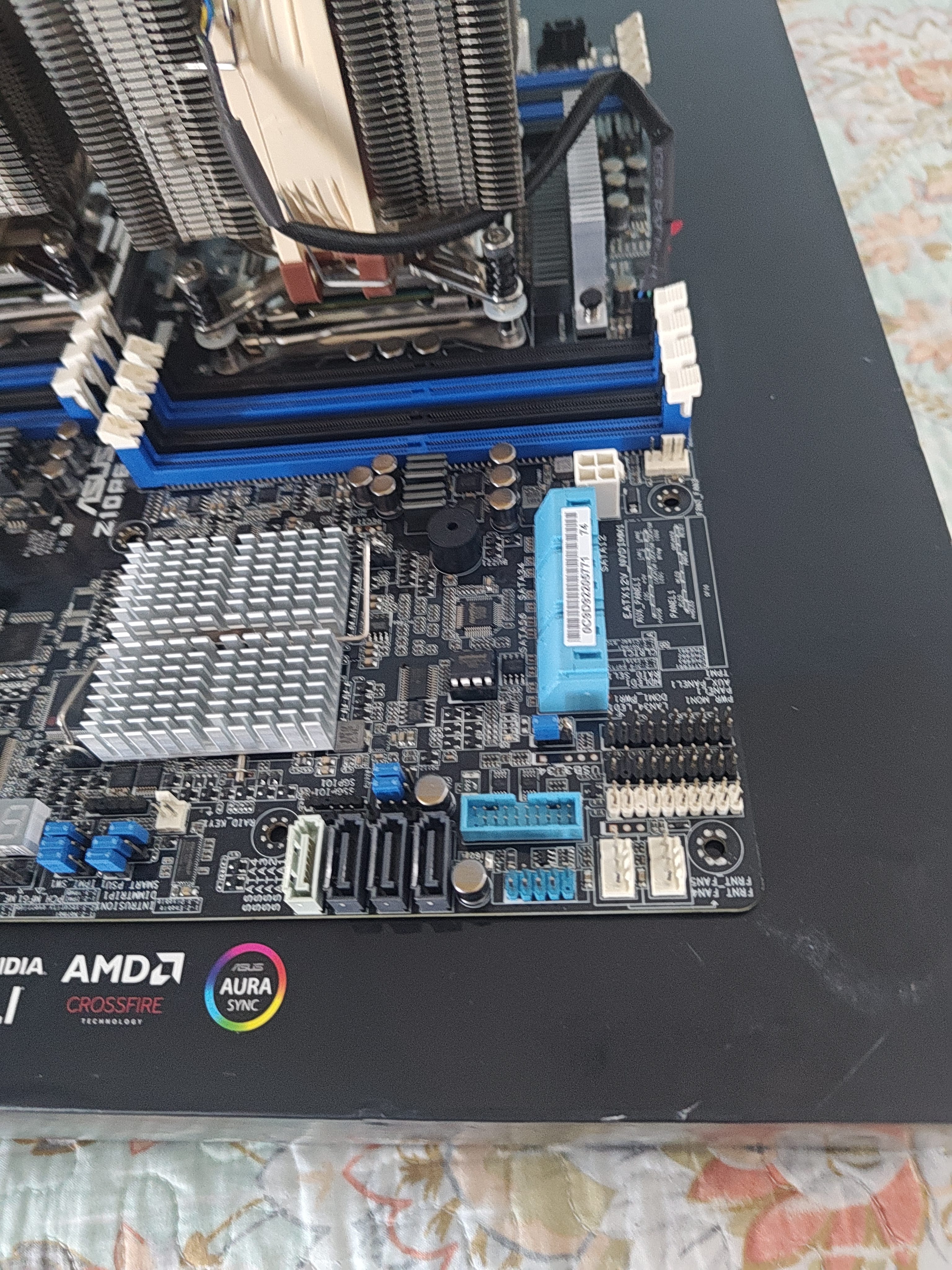

SATA III · M.2
Networking
Dual Intel Gigabit LAN · dedicated IPMI management port
IPMI / BMC

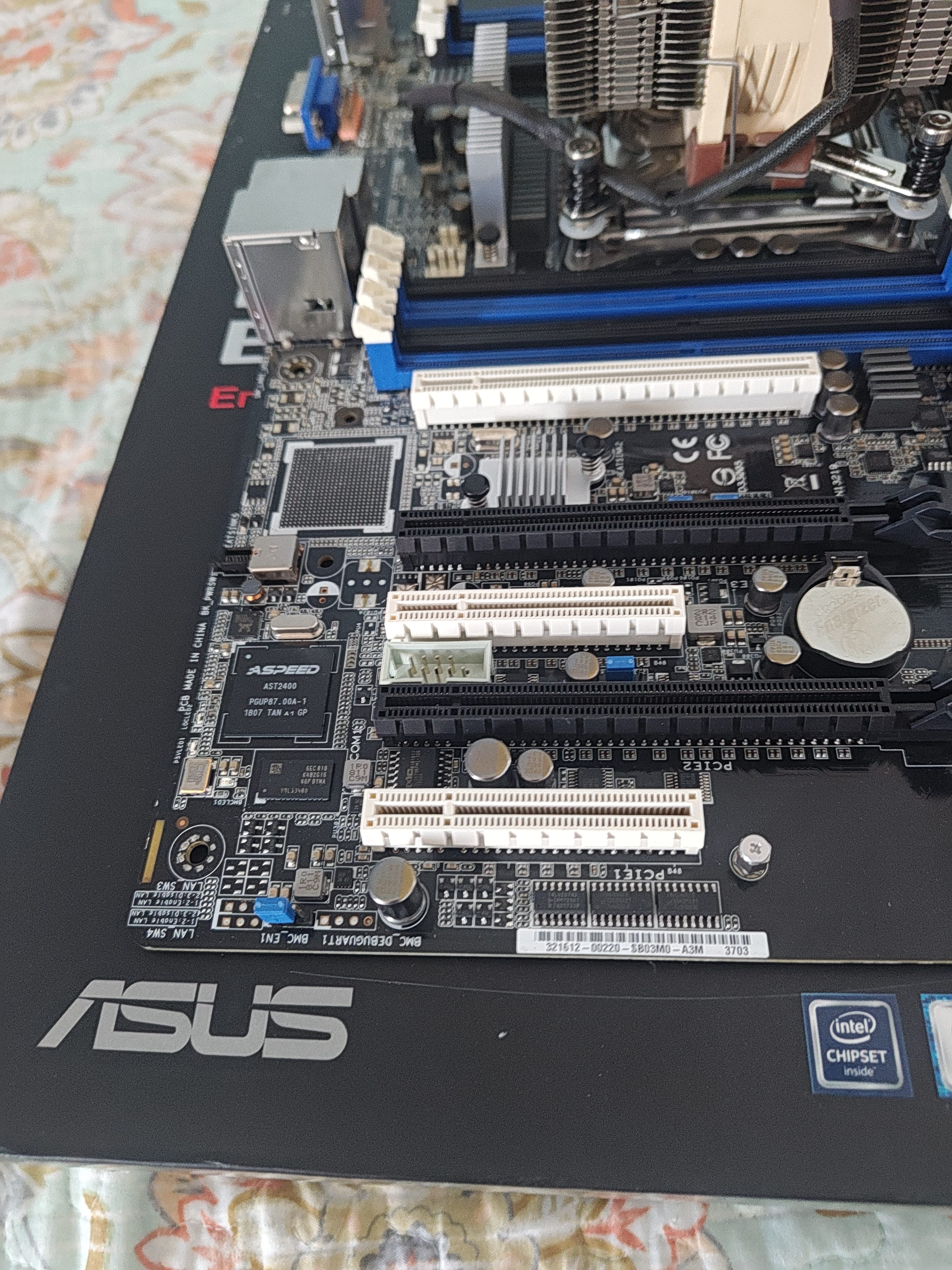

ASUS ASMB8-iKVM — IPMI 2.0, KVM over IP, virtual media, remote power
USB
USB 3.0
Video Out
VGA (onboard, for BIOS / management use)
BIOS

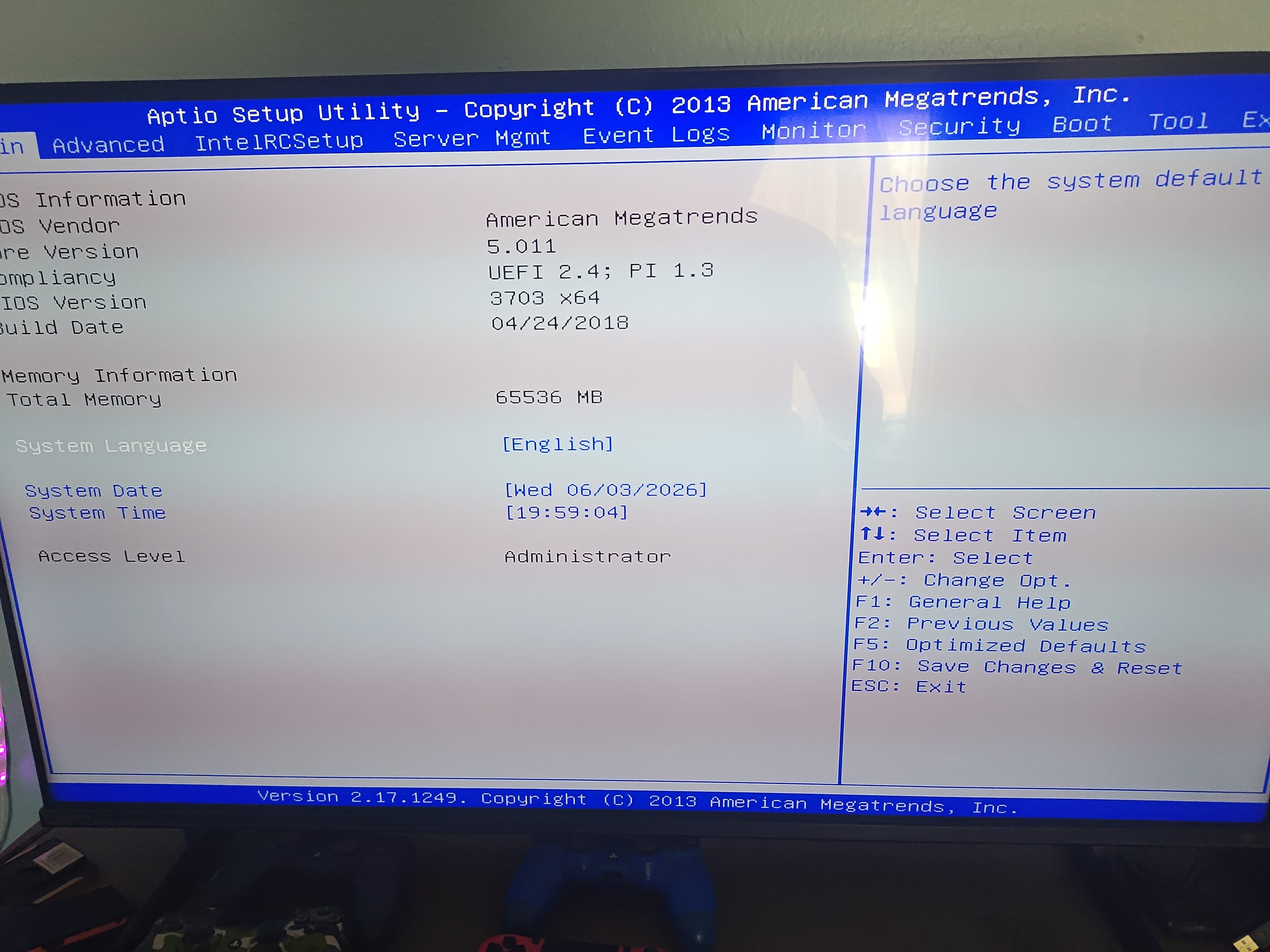

Version 3703 · build date 04/24/2018
Condition
Good — fully tested, clean POST, no issues
